Next™

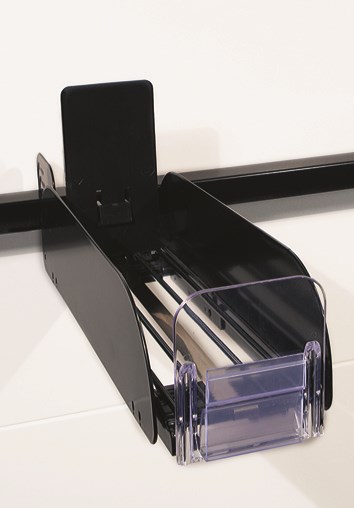

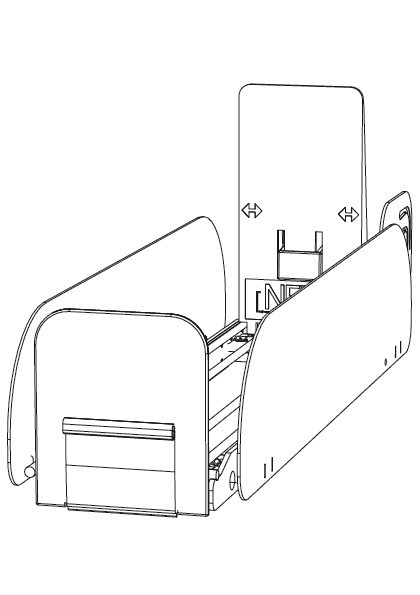

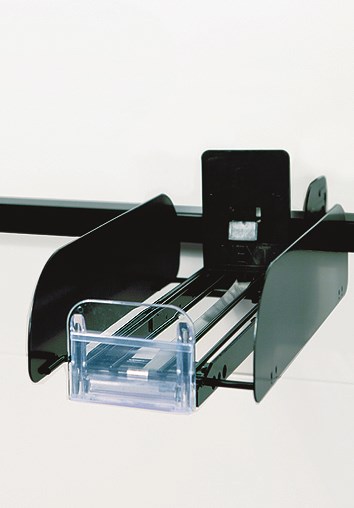

Next™ - Pusher Tray
-
-
-
-
-
-
-
-
Expandable width from 84mm to 165mm. the tray has two metal side dividers. 86mm tall front stop which includes a 39mm tall x 70mm wide label holder. Tray length - 381mm.
- Product name: WP3CB-M
- Product position: Cross bar
- Standard color: Black
- Standard width (mm): 84-165
- Standard depth (mm): 381; 432; 483; 533; 610
- Standard label height (mm): 39x70

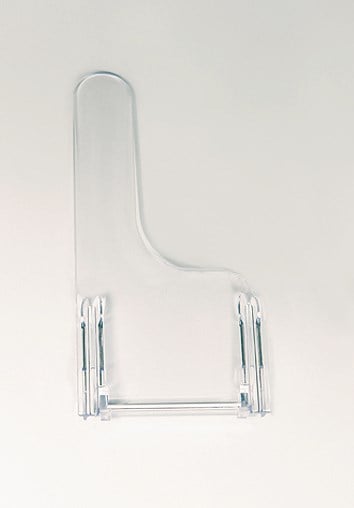

- Standard front: F2; F3; F3F; F6
- Standard pusher: 89x65 (3.5), 127x65 (5), 165x65 (6.5)

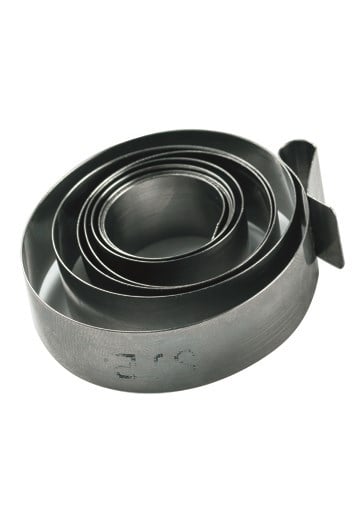

- Standard spring: 4; 6; 9; 10; 12
Articles
| Item number | Colour | Width (mm) | Depth (mm) | Front | PusherHouse | Spring | Label holder |
|---|---|---|---|---|---|---|---|
| 726730 | Black | 84-165 | 381 | F6 | P5 | 4 | C39 |
| 730277 | Black | 84-165 | 381 | F2 | P3.5 | 10 | C39 |
| 890747 | Black | 84-165 | 381 | F3 | P5 | 10 | C39 |
| 890775 | Black | 84-165 | 381 | F6 | P5 | 10 | C39 |
| 725116 | Black | 432 | F2 | P5 | 10 | C39 | |
| 890748 | Black | 84-165 | 432 | F3 | P5 | 10 | C39 |
| 890776 | Black | 84-165 | 432 | F6 | P5 | 10 | C39 |
| 725804 | Black | 84-165 | 483 | F3 | P5 | 4 | C39 |
| 895543 | Black | 84-165 | 483 | F3 | P5 | 6 | C39 |
| 730096 | Black | 84-165 | 483 | F2 | P3.5 | 10 | C39 |
| 890749 | Black | 84-165 | 483 | F3 | P5 | 10 | C39 |
| 890779 | Black | 84-165 | 483 | F6 | P5 | 10 | C39 |
| 897293 | Black | 84-165 | 533 | F2 | P3.5 | 10 | C39 |
| 890772 | Black | 84-165 | 533 | F3 | P5 | 10 | C39 |
| 890780 | Black | 84-165 | 533 | F6 | P5 | 10 | C39 |
