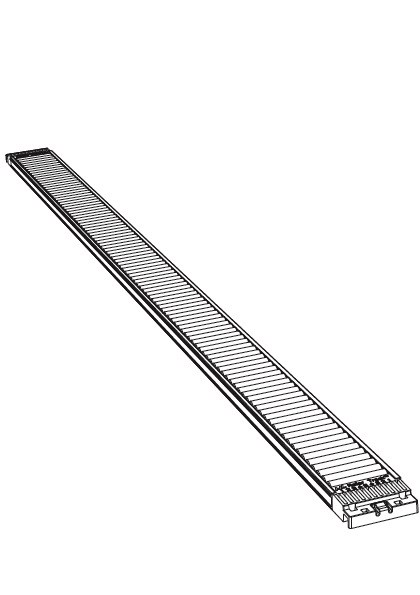

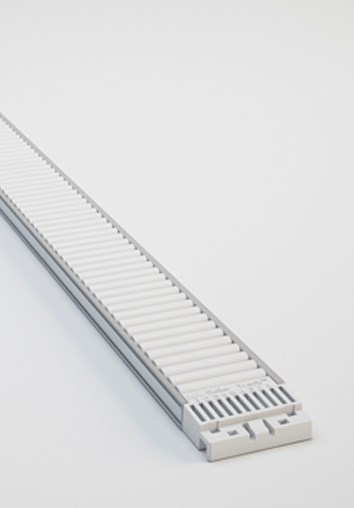

Roller Track™ - Narrow Track For Build Your Own

Narrow Roller Track™ is a component to be used as part of "Build Your Own" Roller Track™ shelf. - Width - 40mm - Length - 387mm

How To: Rollertrack™ is a great product and we want to bring it to as many stores as we can. For this reason we taken the most common size of 387mm shelf depth and created a "Build Your Own" Rollertrack™ system. Step 1 - How many Rollers do I need? - Measure the width of your shelf. - Divide the shelf width by 80.4 to figure out how many of wide rollers (812364) you need. - If required top the width up using the narrow rollers (item 812988) - For example on a 1000mm wide shelf you would be able to fit 12 x 80mm and there is just enough space a 1 x 40mm if you wish. Step 2 - How many dividers do I need? - Decide how many products will be displayed on the shelf, you will need one divider per item, now take that number and add 1 divider for the end. Step 3 - Finally, just add the front 80mm riser (863561) to hold it all together and if using flat shelf, add the angle provider (861951) and you're done!
